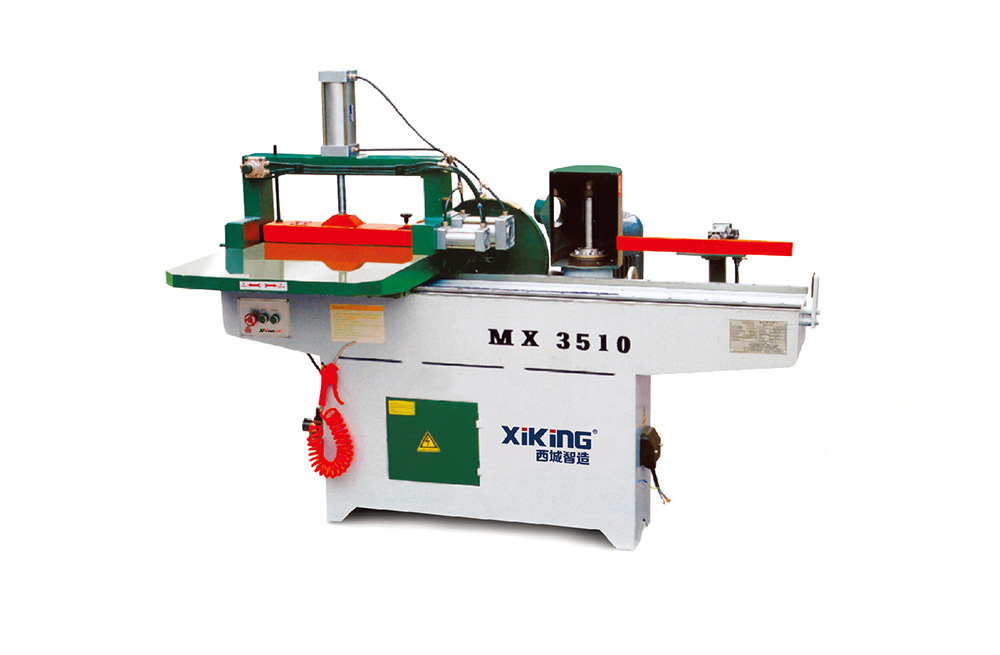

產品中心MX3510梳齒榫開榫機
參數配置
|
最大加工寬度 |
Max.Processing width |
330mm |
|
最大加工厚度 |
Max.Processing thickness |
120mm |
|
梳齒刀頭外徑 |
Outside Dia.of cutter head |
160mm |
|
梳齒刀軸直徑 |
Diameter of cutter spindle |
φ35/50mm |
|
齊頭鋸片直徑 |
Diameter of saw blade |
φ305mm |
|
主軸轉速 |
Rotating speed of main spindle |
6000r/min |
|
工作臺尺寸 |
Dimension of working table |
640x500mm |
|
安裝功率 |
Installation power |
9.7kw |
|
外形尺寸 |
Overall dimension |
1500x1300x1300mm |
|
重量 |
Weight |
650kg |
